Forged working rolls

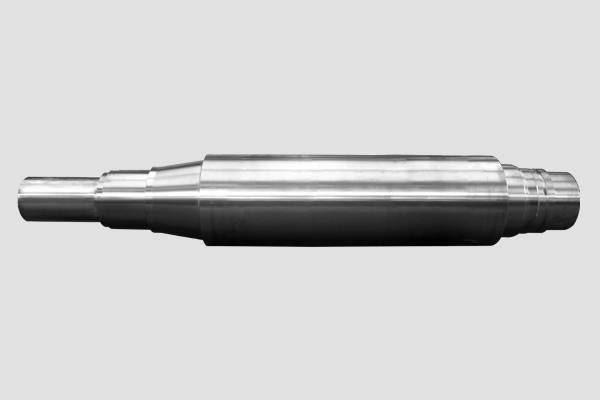

FORGED Work ROLL

Forged steel working roll performs as a tool to transform materials  under normal room temperature. It is the most wear and tear spare parts during the rolling process. By using 2%Cr,3%Cr,5%Cr materials series, Honsin rolls solution provides different rolls properties to meet customers requirements.

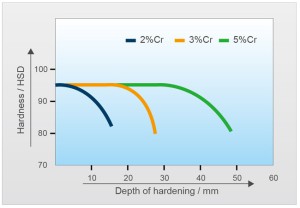

Harndess Curve of Work Roll

Harndess Curve of Work Roll

Physical properties

SymbolHardnessHardness UniformityDepth of hardnessSize
9Cr2Mo85-102 HSD3HSD8~15mm¢200-600mm
MC385-102HSD3HSD15-30mm¢200-1000mm
MC585-102HSD3HSD20-40mm¢300-1000mm

Application

SymbolType of materialApplication for cold mills
9Cr2Mo2%CrWork rolls for general 4 HI mill
MC33% CrWork rolls and intermediate rolls for reverse cold mills.
MC55% CrWork rolls for tandem mill and skin pass mill

Other dimensions or materials requirements can be produced under customers requirements.
